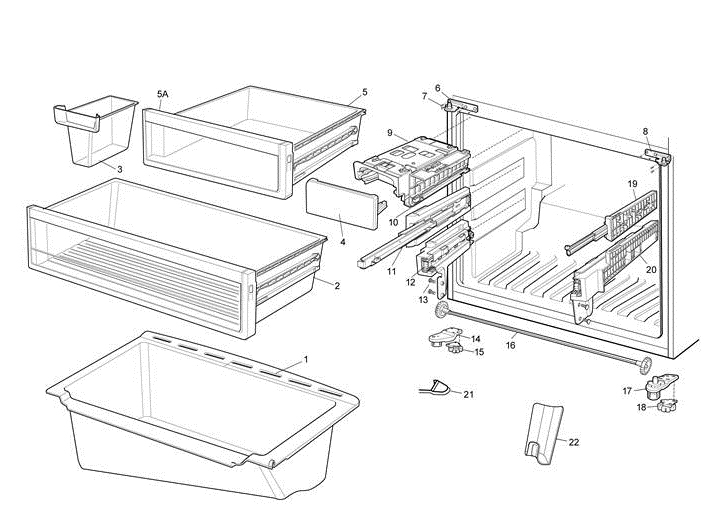

Westinghouse Fridges WHE6000SA-D/925060254 Internal Freezer Section. Exploded Views. Full Parts list

ID Part Number Name Price Add to cart Add
DSE8005667 Bearing Pad DSE8005667

$19.84

DSE8005384 Bin Ice Aim Bf Elux DSE8005384

$66.00

DSE8019771 Bin Ice DSE8019771

$35.00

DSE8005594 Bracket Ice Maker DSE8005594

$14.50

DSE8005514 Centre Hinge Pin Drawer Door DSE8005514

$4.95

DSE8005553 Cover Foot Left Hinge Grey DSE8005553

$12.90

DSE8005551 Cover Foot Right Hinge Grey DSE8005551

$4.95

DSE8022378 Drawer Fzr Fr Mid Asy 90 Wh Ar DSE8022378

$68.00

DSE8022377 Drawer Fzr Fr Upr Asy 90 Wh DSE8022377

$60.00

DSE8005409 Drawer Fzr Mid Asy 90 Wh DSE8005409

$90.17

DSE8006393 Drawer Lower Body Fzr Md90 DSE8006393

$65.00

DSE8022376 Drawer Pastry Body Md 90 DSE8022376

$41.00

DSE8005414 Extension Slide Assembly Lh 300Mm DSE8005414

$51.00

DSE8005415 Extension Slide Assembly Rh 300Mm DSE8005415

$51.00

DSE8005475 Extension Slide Insert Fzr Lh DSE8005475

$9.40

DSE8005476 Extension Slide Insert Fzr Rh DSE8005476

$9.40

DSE8005554 Foot Base Thread DSE8005554

$8.70

DSE8005561 Foot Left Assembly DSE8005561

$20.10

DSE8005556 Foot Lever DSE8005556

$8.70

DSE8005562 Foot Right Assembly DSE8005562

$20.10

DSE8005710 Gear DSE8005710

$11.20

DSE8005512 Hinge Centre Base Assembly DSE8005512

$37.50

DSE8005596 Ice Maker Cover Elux Artwork DSE8005596

$12.50

DSE8005606 Roller Fixed Foot Assembly DSE8005606

$10.60

DSE8021758 Roller Foot DSE8021758

$4.95

DSE8007093 Scoop Ice DSE8007093

$6.00

DSE8019031 Screw Trilob M6X18 DSE8019031

$4.95

DSE8017864 Screw-Hinge/Cam-Btm Etm3600Wb DSE8017864

$2.61

DSE8005539 Shaft Roller Front Wtb4600 DSE8005539

$8.10

DSE8021802 Shaft Telescopic Rail Md90 DSE8021802

$49.51

DSE8005626 Slider Telescopic Rail Lh Asy DSE8005626

$205.00

DSE8005627 Slider Telescopic Rail Rh Asy DSE8005627

$240.00

DSE8005600 Support Pastry Slide Lh DSE8005600

$19.90

DSE8005654 Support Pastry Slide Rh DSE8005654

$14.00
