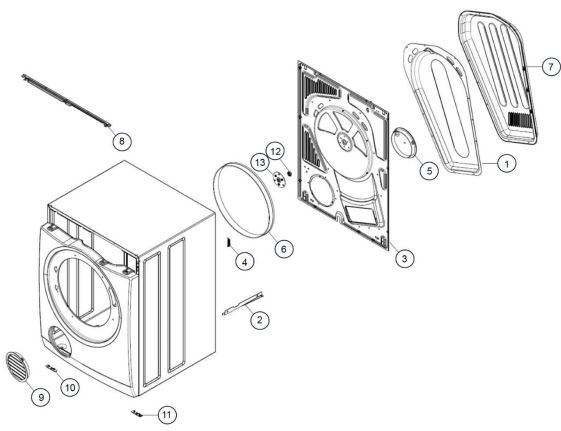

Electrolux Dryers EDV705HQWA/91600210800 Cabinet Assembly. Exploded Views. Full Parts list

ID Part Number Name Price Add to cart Add
DSE8001617 Bearing Kit DSE8001617

$29.50

DSE8004735 Bracket Base Stiffener DSE8004735

$2.51

DSE8000207 Bracket Dryer Wall One Pce DSE8000207

$47.00

DSE8022780 Bracket Reinforce DSE8022780

$13.52

DSE8005111 Cover Assembly Back Panel DSE8005111

$54.00

DSE8015736 Cover Bearing Elem Carrier DSE8015736

$5.60

DSE8019705 Cover Exhaust DSE8019705

$5.39

DSE8004733 Cover Panel Back DSE8004733

$26.00

DSE8004753 Grille Exhaust Cover White DSE8004753

$24.40

DSE8019702 Panel Rear DSE8019702

$106.08

DSE8007490 Plug Corner Left DSE8007490

$9.57

DSE8007491 Plug Corner Right DSE8007491

$9.57

DSE8001063 Seal Kit Drum DSE8001063

$46.50
