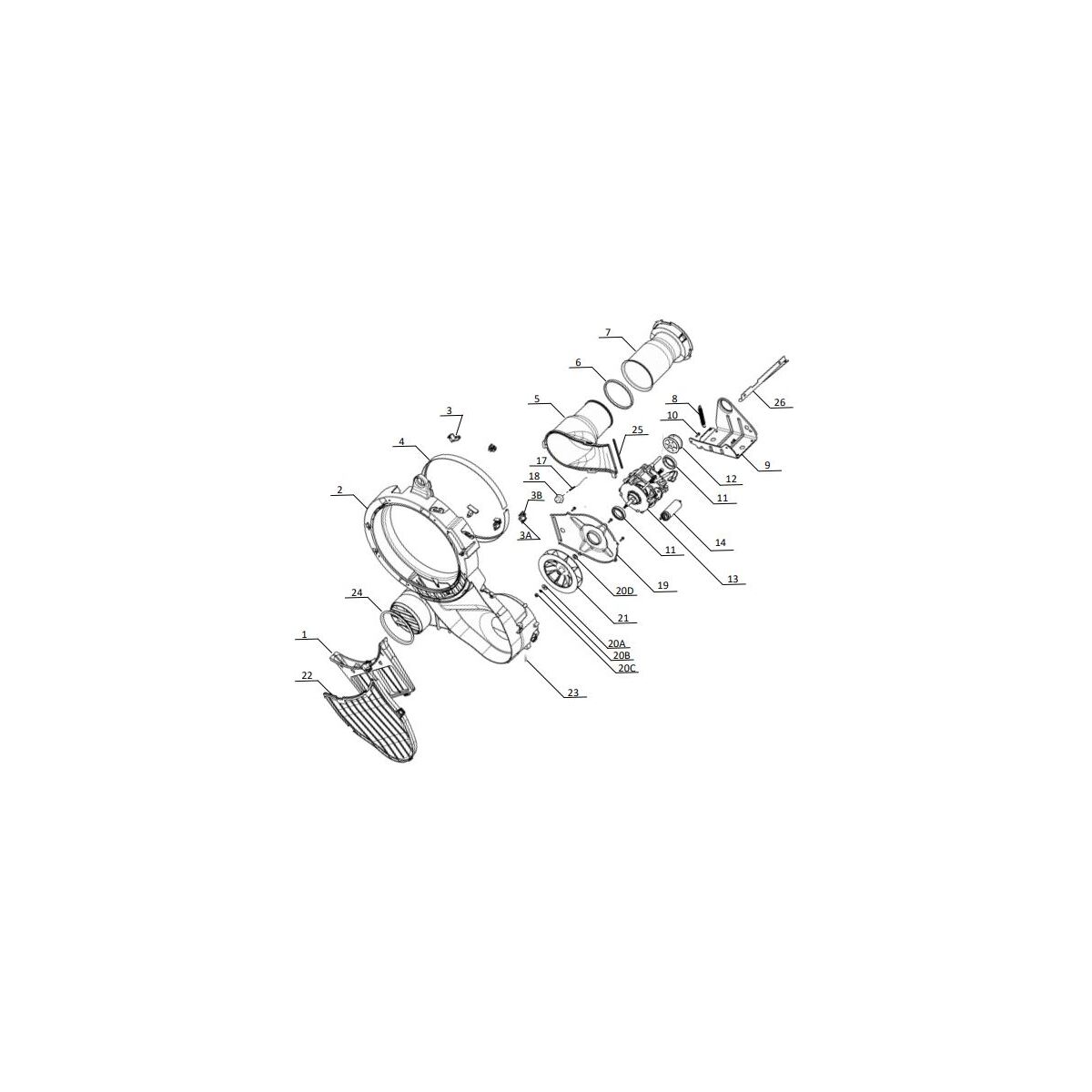

Electrolux Dryers EDV605H3WB/91600214200 Housing Assembly. Exploded Views. Full Parts list

ID Part Number Name Price Add to cart Add
DSE8004743 Bearing Base-High Load DSE8004743

$4.95

DSE8004741 Bearing Face-High Load DSE8004741

$7.32

DSE8026037 BEARING FRONT PADS DSE8026037

$2.30

DSE8001616 Bearing Kit Inc Front Seal DSE8001616

$58.00

DSE8000154 Blade Fan DSE8000154

$59.00

DSE8004735 Bracket Base Stiffener DSE8004735

$2.51

DSE8004734 Bracket Motor Support Rear DSE8004734

$11.60

DSE8019699 Capacitor 8Uf DSE8019699

$43.00

DSE8007186 Cover Housing Blower DSE8007186

$5.41

DSE8004749 Cover Housing Duct & Seal DSE8004749

$6.70

DSE8019703 Duct Extension DSE8019703

$3.69

DSE8019706 Filter Assembly DSE8019706

$52.00

DSE8007349 Harness-Assembly Elec Lc_Au DSE8007349

$110.00

DSE8022719 Kit Motor Edv6552 DSE8022719

$250.00

DSE8004724 Nut M6 DSE8004724

$4.95

NPL Please contact us for ordering or pricing information on this product.

$0.00

DSE8015733 Pulley Idler DSE8015733

$44.00

DSE8019707 Ring Assembly Motor Mount DSE8019707

$2.70

DSE8004730 Screw M4X1.75X14 Pcb DSE8004730

$4.95

DSE8004731 Screw M4X1.75X14 Plastite Hex DSE8004731

$4.95

DSE8004738 Seal Cover Housing Duct Small DSE8004738

$4.95

DSE8004736 Spring Belt Tension DSE8004736

$6.20

NPA Unfortunately this item is not supplied as a spare part by the manufacturer.

$0.00

NLA Unfortunately this particular part is No Longer Available.

$0.00

DSE8004726 Washer Fan Rear DSE8004726

$4.95

DSE8003548 Washer Plain71311-002 24 DSE8003548

$3.50

DSE8004727 Washer Spring M6 DSE8004727

$4.95
